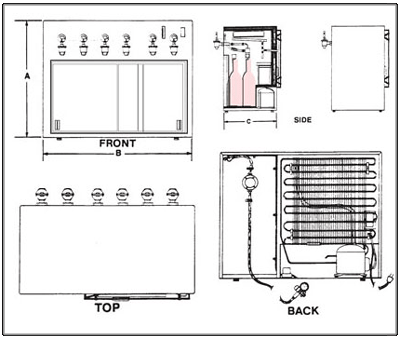

Le Cruvinet Winebar Drawings

Download the Le Cruvinet Spec Sheet

Get Adobe Acrobat Reader

This 2 page PDF document (400K size) requires Adobe Acrobat Reader©. If you do not have Acrobat Reader click the logo to download the program.

Complete the Cruvinet On-line form to receive
more information and a color brochure.


MODEL# UL-4 CR-6 CR-8 CR-12
A-Height* 25" 25" 25" 25"
B-Length* 19" 29" 37.5" 56"
C-Depth* 18.5" 18.5" 18.5" 18.5"
Weight 80 90 120 160
High Temp Compressor
Horsepower 1/20 1/20 1/20 1/20
Rated (amps) 1.3 1.3 1.3 1.3
*Add 1" to Height, Length and Depth for Wood Cabinets.
Custom dimensions available.

ELECTRICAL 110 Volt AC, 2.8 AMPS, 60 Hz
INTERIOR LIGHTS 24 Volt AC strip lights
POWER SOURCE Internal 24 Volt AC Transformer
DOORS Sliding 1/2" thermopane glass
INSULATION Polyurethane foam
REFRIGERANT MP 39
EVAPORATOR Static Plate
TEMP CONTROL Adjustable thermostat
CONDENSER Static plate
DEFROSTING Semi-Automatic
GAS Nitrogen Food Grade or better; via 1/4" I.D. x 1/2" O.D. fiber reinforced H.P. hose to remote tank
PRESSURE 1.4 to 1.6 PSI
OPTIONS Special decor colors, matching and custom wood finishes, additional red wine compartment refrigeration available on 8 faucet and larger faucet units, security locking and stainless steel faucets.
