Le Grand Cruvinet

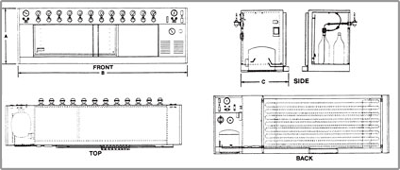

Cruvinet Winebar Drawings

Tested to NSF/ANSI Standard 18 and UL 471 by Intertek
for stainless steel, (wood not included), by Intertek


Download the Le Grand Cruvinet Spec Sheet

Get Adobe Acrobat Reader

This 2 page PDF document (400K size) requires Adobe Acrobat Reader©. If you do not have Acrobat Reader click the logo to download the program.

Complete the Cruvinet On-line form to receive
more information and a color brochure.


The Cruvinet System is the answer to serving better wines by the glass.

Le Grand Cruvinet's Specs:

MODEL# GCR-6 GCR-8 GCR-12 GCR-16 GCR-24
A-Height* 22.5" 22.5" 22.5" 22.5" 22.5"
B-Length* 41" 48.5" 63.5" 78.5" 102"
C-Depth* 18" 18" 18" 18" 18"
Weight 180 200 265 315 350
High Temp Compressor
Horsepower 1/8 1/8 1/6 1/6 1/6
Rated (amps) 2.6 2.6 3.4 3.4 3.8
*Add 1" to Height, Length and Depth for Wood Cabinets. Custom dimensions available.

TESTING Tested to NSF/ANSI Standard 18 and UL 471 for stainless steel, (wood not included), by Intertek
ELECTRICAL 110 Volt AC, 2.8 AMPS, 60 Hz
INTERIOR LIGHTS 24 Volt AC strip lights
POWER SOURCE Internal 24 Volt AC Transformer
DOORS Sliding 1/2" thermopane glass
INSULATION Polyurethane foam
REFRIGERANT MP 39
EVAPORATOR Static Plate
TEMP CONTROL Adjustable thermostat
CONDENSER Static plate
DEFROSTING Semi-Automatic
GAS Nitrogen Food Grade or better; via 1/4" I.D. x 1/2" O.D. fiber reinforced H.P. hose to remote tank
PRESSURE 1.4 to 1.6 PSI
OPTIONS Special decor colors, matching and custom wood finishes, rounded radius ends, security locking devices and stainless steel faucets for dishwasher proof washing and virtual indestructibility.
